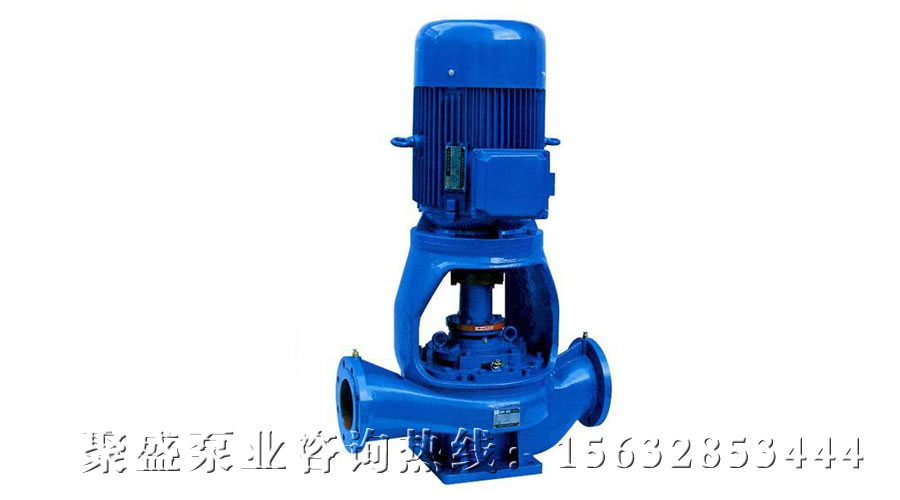

Easily Detachable Pipeline Centrifugal Pump

The easily detachable pipeline centrifugal pump adopts an impeller with an excellent hydraulic model, eliminating the shortcoming of high axial force in traditional vertical pumps. The motor uses Y-series standard general-purpose motors, addressing the difficulty of replacing extended-shaft motors in conventional vertical pumps. Additionally, its 100% easily detachable structure solves the challenges of replacing bearings, mechanical seals, impellers, and pump shafts in high-power pumps.

This pump offers unparalleled advantages such as smoother operation, longer service life, easier motor matching, and hassle-free maintenance. It is an ideal replacement for conventional centrifugal pumps like ISG vertical pumps, IS centrifugal pumps, and S-type double-suction pumps.

Product Features of Easily Detachable Pipeline Centrifugal Pumps

1. Vertical Structure with Convenient Installation:

• The unique design integrates the motor and pump body through a coupling, ensuring high concentricity and precision. This significantly reduces floor space and cuts pump room construction costs by 30% to 60%. The stable base, compact structure, and exquisite casting and finishing give the pump a modern aesthetic, blending functionality with artistic appeal.

2. Reliable Motor Performance:

• Equipped with Y-series standard general-purpose motors from renowned domestic manufacturers, the pump operates smoothly with extremely low noise.

3. High-Quality Bearings:

• Features internationally renowned precision bearings, ensuring high accuracy, reliability, and extended service life.

4. Hydraulic Model with Axial Force Balance:

• The impeller’s self-balancing hydraulic design prolongs the service life of pump bearings and mechanical seals.

5. Easy Bearing Maintenance:

• Bearings in the motor bearing housing are equipped with grease injection and drain ports, simplifying maintenance.

6. Vibration and Noise Reduction:

• The detachable rigid intermediate coupling ensures vibration-free and noise-free pump startup. Rotating components are protected by a reliable safety guard, enhancing operational safety.

7. Durable Mechanical Seal:

• The mechanical seal is made of stainless steel, tungsten carbide, and fluororubber, offering high-temperature and high-pressure resistance, long service life, no leakage, and no shaft wear, ensuring a clean working environment.

8. Tool-Free Maintenance Design:

• The uniquely designed pump cover allows easy removal of the bearing housing, pump cover, pump shaft, and impeller assembly by simply disassembling the rigid intermediate coupling and pump cover nuts. This eliminates the need to dismantle the motor, pump body, or pipeline, enabling quick and convenient replacement of mechanical seals and impellers.

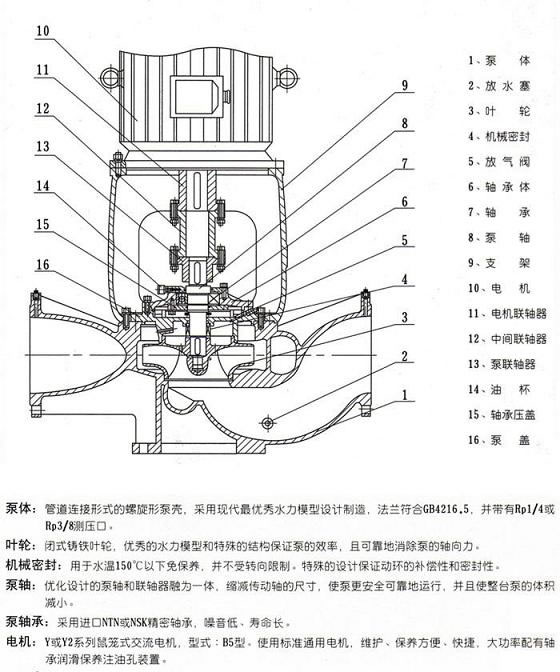

Structural Explanation of Easily Detachable Pipeline Centrifugal Pump：

Easily Detachable Pipeline Centrifugal Pump Performance Parameters:
